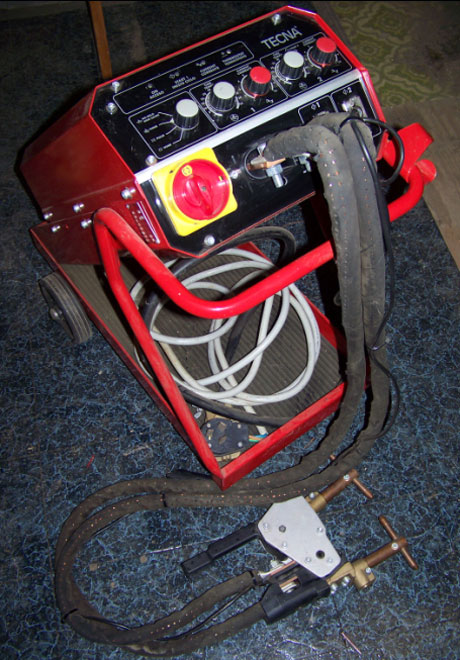

TECNA 3484 - 35KVA MULTI-FUNCTION RESISTANCE SPOT WELDER
|
|
|
|
|
|
|
|
|
|
|
Tecna Multi-Function Resistance Spot Welder
|
|
|
|
Benefits:
- Inexpensive power connection, 220 volt, single phase.
- No special electrical required. Uses standard 50 amp breaker.
- Comes standard with a variety of arms.
- 6400 amps of welding power at the electrodes
- Cuts repair time compared to other methods of welding.
- Dent - pull in 5 seconds.
- Weld in confined areas such as inside trunks with single sided gun.
- Stop wasting time looking for accessories. Handy cart keeps arms, electrodes all in one place.
- OEM approved first class equipment.
|
Technical Specifications
|
3484
|
3450
|
|
Pneumatic assisted welding gun
|
No
|
Yes
|
|
Pressure control sensor
|
No
|
Yes
|
|
Suspension arm with balancer
|
No
|
Yes
|
|
Additional arm options
|
Yes
|
Yes
|
|
Air requirements: 120 PSI
|
No
|
Yes
|
|
Amps output power at the electrodes
|
6400
|
8000
|
|
Pressure with standard x-gun lbs.
|
N/A
|
370
|
|
Water cooled arms and electrodes
|
No
|
Yes
|
|
Amps draw at 208 volt single phase
|
35
|
50
|
|
Amps draw at 230 volt single phase
|
30
|
40
|
|
Digital control pads
|
No
|
Yes
|
|
Optional c-gun
|
Yes
|
Yes
|
|
Cable length in feet.
|
7
|
7
|
|
Dimensions:
|
25" x 18" x 40"
|
|
Weight lbs.
|
154
|
250
|
|
Technical Welding Parameters with TECNA Welders:
- Sort of Steel: Mild Steel, Galvanized Steel, High Strength Steel, Stainless Steel
- Weld thickness: Double sided 3 x 14 ga. (2 mm)
- Single sided 16 ga. (1.5mm)
- Plug tear size: 22 ga. (0.8mm) 3/16" (4.7mm)
19 ga. (1mm) 13/64" (5mm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
